DAB- JINOX M

!!! CALL FOR PRICE NOW !!!

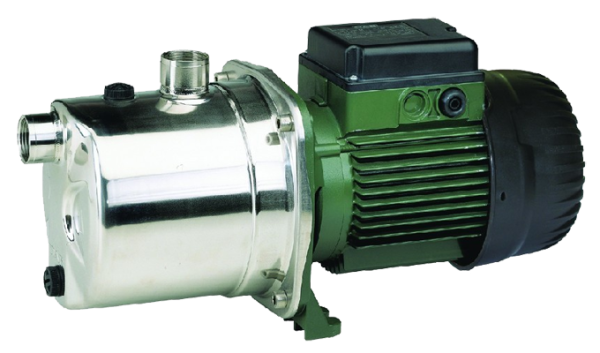

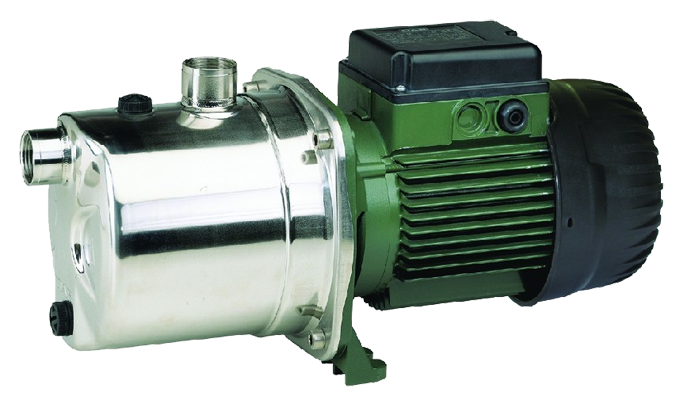

Self-priming centrifugal pump with excellent suction capacity even when there are air bubbles. Particularly suitable for water supply in domestic installations, smallscale agriculture, gardening and wherever self- priming operation is necessary.

Pump body and motor support in cast iron. Technopolymer impeller, diffuser, Venturi tube and sand guard. Stainless steel adjustment rings. Carbon/ceramic mechanical seal. Asynchronous motor closed and cooled by
external ventilation.

Built-in thermal and current overload protection and a capacitor permanently on in the single-phase version. For the protection of the threephase motor it is advisable to use a suitable overload protection complying with the regulations in force.

For further information and to download product brochure and manuals
please visit: Dabpumps.com

Additional information

Kw Output

0.44, 0.6, 0.75, 1.0,

Volts

240

Horse Power

0.6, 0.8, 1.0, 1.36

Flow Rate

0.66 Litre/ sec

Warranty

2 Year Warranty

Brand

DAB

Model Number

DAB-JINOX62M, DAB-JINOX82M, DAB-JINOX102M, DAB-JINOX112M, DAB-JINOX 132M
